Drum Palletizer Manufacturer, Exporter and Suppliers

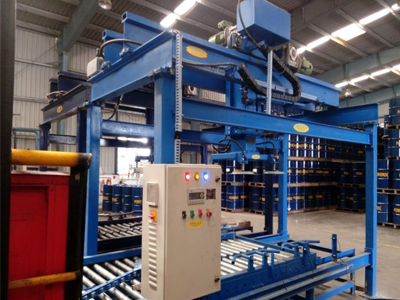

DCP Series

A company that makes drum palletizers. Palletizing systems are optimised with this technology. The handling method, specifically at filling factories, resolves the common issues that all businesses encounter when they must load plastic or metal drums onto pallets. The palletizing system offers a practical and affordable solution. The system that palletizes drums is entirely automated. It is possible to shift different numbers of plastic and metal drums from one pallet to another without causing any damage, which improves operational procedures.

The handling method addresses the common issues that arise while loading synthetic or metal drums onto pallets, particularly in the chemical sector or other filling facilities.

  • Cost-effective, fully automated palletizing of synthetic and metal drums
  • Careful handling of drums thanks to gentle transfer
  • Suitable for a variety of pallet types
  • Suitable for a variety of arrangement patterns
  • More competitively priced than a robotic palletizer
  • Manual handling of drums is no longer required

Drums are picked up by the palletizing system. Conveyors move a pallet from the pallet magazine to the corresponding position in the drum palletizer. Sliding plates extend over the pallet, allowing the drums to be moved without any risk of danger or damage. The sliding plates are pulled out from under the drums once the synthetic or metal drums have been pushed onto them. Drums are hold in position during this procedure. The drums have reached their final position on the pallet and loaded pallet can be removed from the system. The next palletizing sequence can begin.

  • Move in of the drums
  • Move in of the pallet
  • The sliding plates are extended
  • Pushing of the drums
  • Drums are moved in again
  • Drums are pushed again
  • Retraction of the sliding plates
  • Removal of the pallets

This palletizer is especially designed to pick up drums on pallet automatically, which includes drum feed-in conveyor, auto palletizing grimp hand, lifting unit, release unit, pallet dispenser, and full pallet discharge conveyor.


DCP Series

  • Designed for Metal and Synthetic Drums
  • Palletize in world’s most cost-effective system
  • Fully Automated
  • Tailored to End Users’ requirements
  • Special vacuum mechanism to prevent any distortion of metal drum
  • Custom build gripper mechanism for synthetic drums
  • Gentle transfer without damages
  • Made for pallets of varying sizes across the world
  • Cost effective compared to Robotic Palletizer
  • Safe, Robust and ergonomic design
  • Various Sensors, Encoders, Grippers for Good Accuracy in positioning & palletizing
  • Automation by PLC, HMI, Sensor, Control Panel from reputed brands
  • Customization for Pay load, Speed & Layout
  • NO more Manual Handling of Heavy Drums

Specifications

Drum material Metal or Synthetic
Weight 350Kg / drum (max)
Payload 1400Kg / 700Kg (350Kg * 4 or 350Kg * 2)
Matrix 2 x 2 or 2 x 1
Pallet 1000mm x 1000mm or 1200mm x 1200mm
Speed 100 drums (2 x 2 matrix)
Power 8KVA - 415VAC, 3ph, 50Hz

Process

Drums are allowed to enter into infeed conveyor. The automated system forms a matrix as per the palletizing requirement. A pick n place system picks of the formed matrix and places on the pallet in waiting. The transfer will be very smooth and motion is tracked and controlled by various motion control systems.




Options
  • Pallet Dispenser
  • Stainless Steel Version
  • Flame Proof Version

USP
  • Designed, Developed & made in India
  • Fully Automated
  • Successful track record of multiple deployments since 2015
